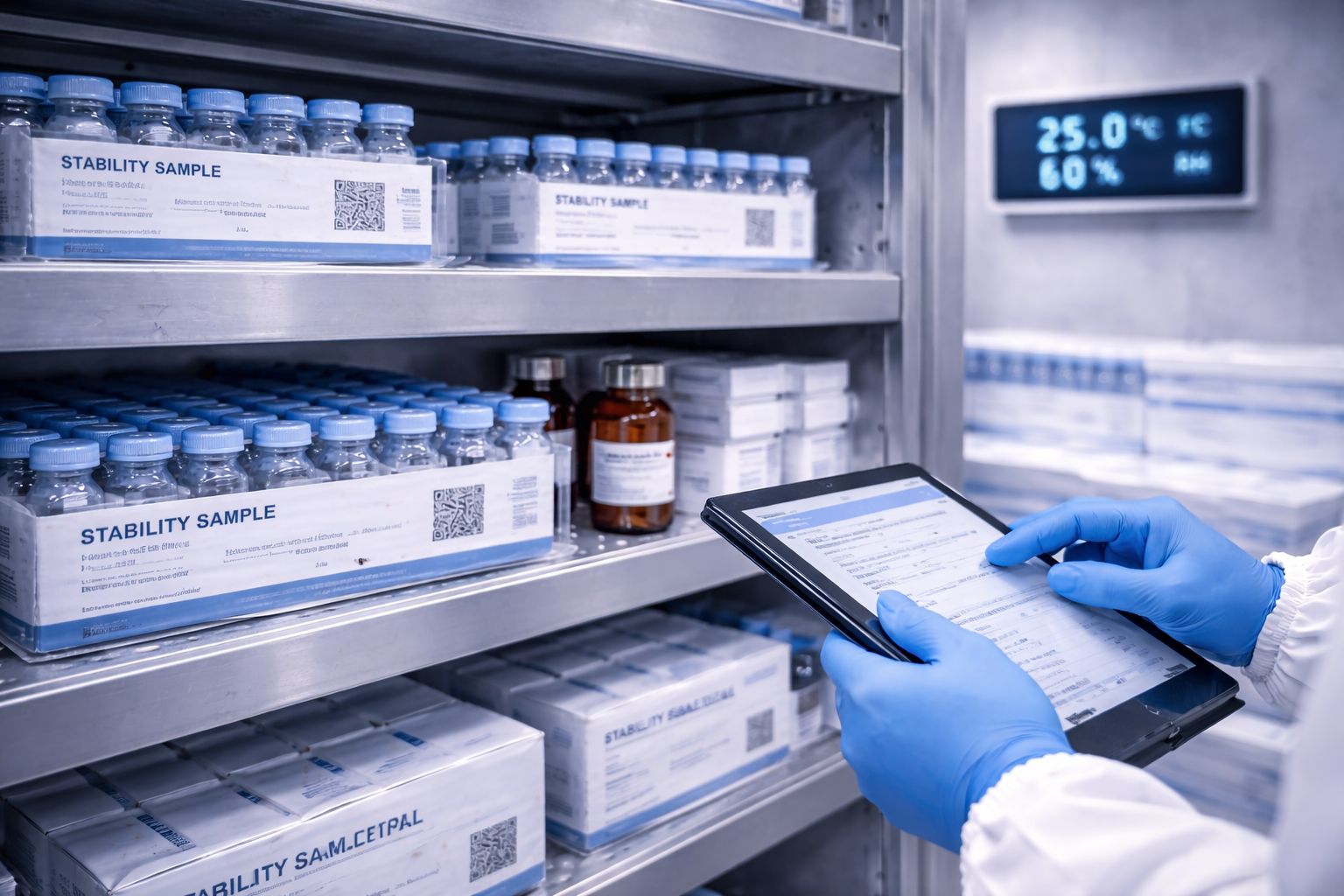

Cold Room Design for Pharmaceutical Stability Testing Storage

Stability testing determines how a drug or medical product holds up under specific environmental conditions over time, and the results shape everything from shelf-life labelling to regulatory approval. The entire process depends on a storage environment that can simulate and hold precise temperature and humidity conditions without drift.

A stability chamber that runs even slightly off spec doesn’t just produce bad data, it produces confident-looking bad data, which is why specialised cold room design sits at the centre of testing accuracy, not just at the periphery of storage logistics.

This article looks at how cold room systems are designed to meet stability testing requirements, with practical examples throughout.

The Role of Cold Rooms in Stability Testing

Stability testing means storing pharmaceutical products under defined environmental conditions for extended periods, which typically include:

• Long-term storage, such as 25°C / 60% RH
• Accelerated testing, such as 40°C / 75% RH
• Refrigerated conditions, typically 2°C to 8°C
• Frozen or ultra-low environments

Cold rooms built for stability testing need to hold these conditions with a level of precision standard storage doesn’t require. Any fluctuation risks inaccurate shelf-life data, which can lead directly to regulatory issues down the line.

Achieving Precise Temperature and Humidity Control

Accurate environmental control is the single most critical requirement for stability testing. Cold rooms need to maintain stable temperature and humidity levels across every storage area, not just where the sensor sits.

Key design features:

High-precision HVAC systems. Capable of holding tight temperature and humidity tolerances over long testing durations.

Uniform airflow distribution. Prevents hotspots and keeps conditions consistent throughout the room.

Advanced insulation materials. Reduce external influence and protect internal stability from ambient conditions.

Environmental monitoring sensors. Provide real-time data on temperature and humidity levels for continuous verification.

Case example: A pharmaceutical testing laboratory upgraded its cold room with precision HVAC systems and improved airflow design. Temperature variations disappeared, which gave the lab consistent, reliable stability testing results.

Supporting Multiple Testing Conditions

Pharmaceutical companies often run several stability tests at once, each under a different environmental condition. Cold room design needs to support multi-zone configurations that hold different conditions inside the same facility.

Multi-zone design strategies:

• Separate chambers for different temperature and humidity conditions
• Modular cold room panels for flexible configuration
• Independent control systems for each zone
• Clear labelling for test identification

Case study: A contract testing laboratory implemented a modular cold room system with multiple independent zones. Different stability studies ran concurrently, which increased testing capacity without expanding the facility’s footprint.

Ensuring Compliance with Regulatory Standards

Stability testing sits under strict guidelines set by the International Council for Harmonisation (ICH), alongside Good Manufacturing Practice (GMP) requirements and oversight from bodies such as the Health Sciences Authority (HSA) in Singapore.

Cold room design should support compliance by ensuring:

• Validated environmental conditions
• Continuous monitoring and data logging
• Accurate documentation for audits
• Controlled access to testing areas

Compliance-focused features:

Data logging systems. Record environmental conditions over time for analysis and reporting.

Calibration and validation processes. Ensure equipment accuracy and reliability, not just at commissioning but throughout the testing period.

Audit-ready monitoring systems. Provide detailed records for regulatory inspections without extra preparation time.

Backup systems. Maintain conditions during power or equipment failures, protecting months of testing data from a single outage.

Case example: A pharmaceutical company installed a cold room with automated data logging and backup systems. During a regulatory audit, the facility produced complete environmental records, demonstrating compliance with ICH guidelines.

Maintaining Sample Integrity Over Time

Stability testing often runs for months or years, not days, which means cold room systems need to guarantee long-term consistency rather than short-term stability alone.

Key considerations:

• Durable, high-quality insulation materials
• Redundant cooling systems for uninterrupted operation
• Regular maintenance and calibration schedules
• Minimal disturbance during access

Example: A pharmaceutical manufacturer implemented a cold room system with redundant cooling units and strict maintenance protocols. Conditions stayed consistent over long testing periods, which cut the risk of data loss or product degradation.

Optimising Storage Layout for Testing Efficiency

Stability testing cold rooms need to balance control with accessibility, since researchers and technicians need regular access to samples without disturbing the environmental conditions those samples depend on.

Layout optimisation strategies:

Organised shelving systems. Allow easy identification and retrieval of samples without extended door-open time.

Clear labelling and documentation. Ensure accurate tracking of test samples across long testing periods.

Dedicated access pathways. Minimise disturbance to stored products during routine checks.

Ergonomic design. Improve efficiency for laboratory staff handling frequent sample pulls.

Case study: A research facility redesigned its cold room layout with clearly labelled shelving and optimised pathways. Workflow efficiency improved and the time required to access test samples dropped.

Enhancing Data Accuracy and Traceability

Stability testing lives or dies on data accuracy. Cold room systems need to support reliable data collection and full traceability from the first day of testing to the last.

Key features:

• Real-time monitoring systems
• Automated data recording and storage
• Integration with laboratory information systems (LIMS)
• Alarm systems for environmental deviations

Case example: A biotech company integrated its cold room monitoring system with its LIMS platform. Data collection ran seamlessly, which improved the accuracy of stability testing records across every study.

Future-Proofing Stability Testing Facilities

Pharmaceutical products are getting more complex, and stability testing requirements will keep evolving alongside them. Cold room systems need scalability and adaptability built in from the start.

Future-ready features:

• Modular cold room construction
• Smart monitoring and IoT integration
• Energy-efficient systems for sustainability
• Flexible configurations for new testing protocols

Conclusion

Stability testing depends entirely on the quality of the storage environment behind it. Cold room design determines whether a facility gets precise, defensible data or results that regulators eventually question, and getting it wrong doesn’t surface until months of testing are already lost.

Kiat Lay Coldroom Specialist has designed and maintained pharmaceutical-grade cold rooms in Singapore since 1982, with direct experience building multi-zone, precision-controlled environments for stability testing facilities. Speak with Kiat Lay about designing a cold room built for your stability testing requirements.

Frequently Asked Questions

What conditions does a pharmaceutical stability testing cold room need to maintain?

Stability testing cold rooms typically hold long-term storage at 25°C / 60% RH, accelerated testing at 40°C / 75% RH, refrigerated conditions at 2°C to 8°C, or frozen and ultra-low environments, depending on the study protocol.

What regulatory standards apply to pharmaceutical stability testing storage?

Stability testing storage needs to meet International Council for Harmonisation (ICH) guidelines and Good Manufacturing Practice (GMP) requirements, with oversight from the Health Sciences Authority (HSA) in Singapore.

Can one facility run multiple stability tests under different conditions at the same time?

Yes. Multi-zone cold room configurations with modular panels and independent control systems allow separate chambers to hold different temperature and humidity conditions within the same facility.

Why is temperature precision more critical in stability testing than standard storage?

Any fluctuation in a stability testing chamber can produce inaccurate shelf-life data, which affects product labelling and regulatory approval, making precision a data integrity issue rather than just a storage concern.

How long do pharmaceutical products typically stay in stability testing storage?

Stability testing can run for months or years depending on the study, which is why cold room systems need redundant cooling, durable insulation and regular calibration to guarantee long-term consistency.

How does cold room design support data accuracy in stability testing?

Real-time monitoring, automated data recording, and integration with laboratory information systems (LIMS) allow stability testing facilities to maintain accurate, traceable records throughout the full testing period.
